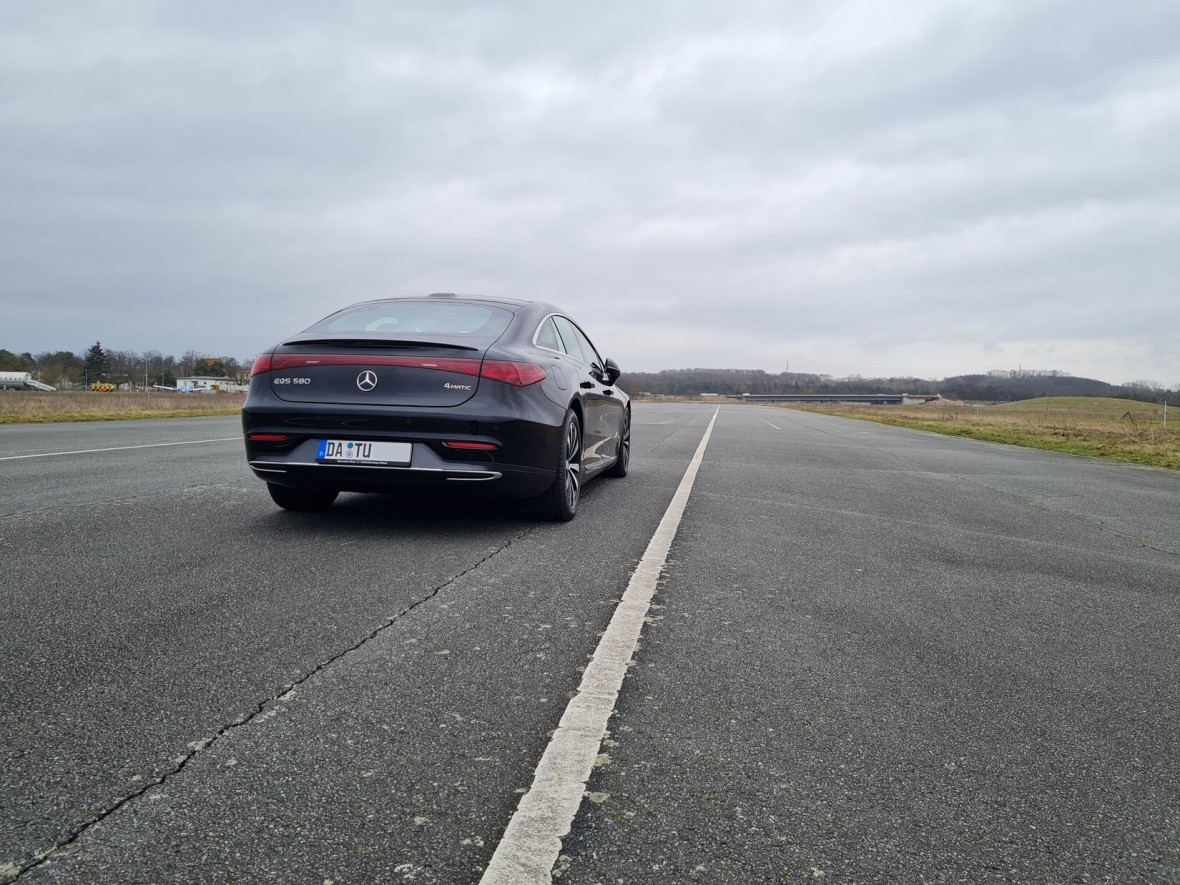

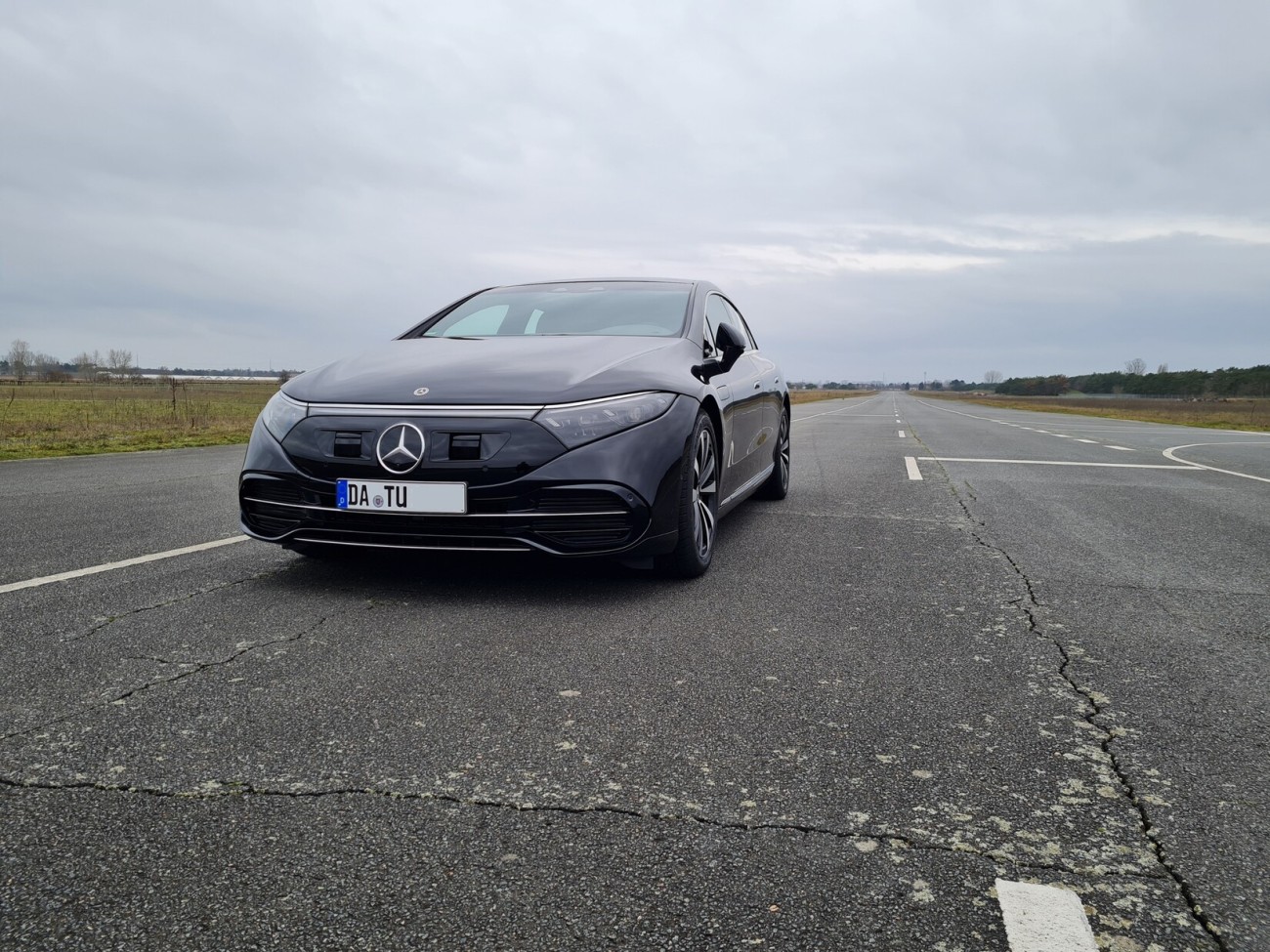

MB EQS with Drive Pilot

BEV with conditionally automated driving system (L3)

In January 2023, FZD welcomed its latest family member: a battery electric sedan with the first conditionally automated driving system (L3) meeting the legal requirements of the international UN-R157. FZD uses it in research and teaching (e.g. in the Automotive Engineering Tutorial).

Performance Data of L3-AD Vehicle

  • Name: Mercedes-Benz EQS 580 4MATIC
  • Length: 5216 mm
  • Width: 1926 mm
  • Width: 1790 mm
  • Height: 1512 mm
  • Wheel base: 3210 mm
  • Mass: 2620 kg
  • Max. Angle of Rear-Axle-Steering: 10°
  • Suspension: Air
  • Battery Capacity (approx.): 108 kWh
  • Range (WLTP): 684 km
  • Engine: 2x PSM
  • Peak power: 385 kW (523 PS)
  • Maximum torque: 858 Nm
